Description

Main Features

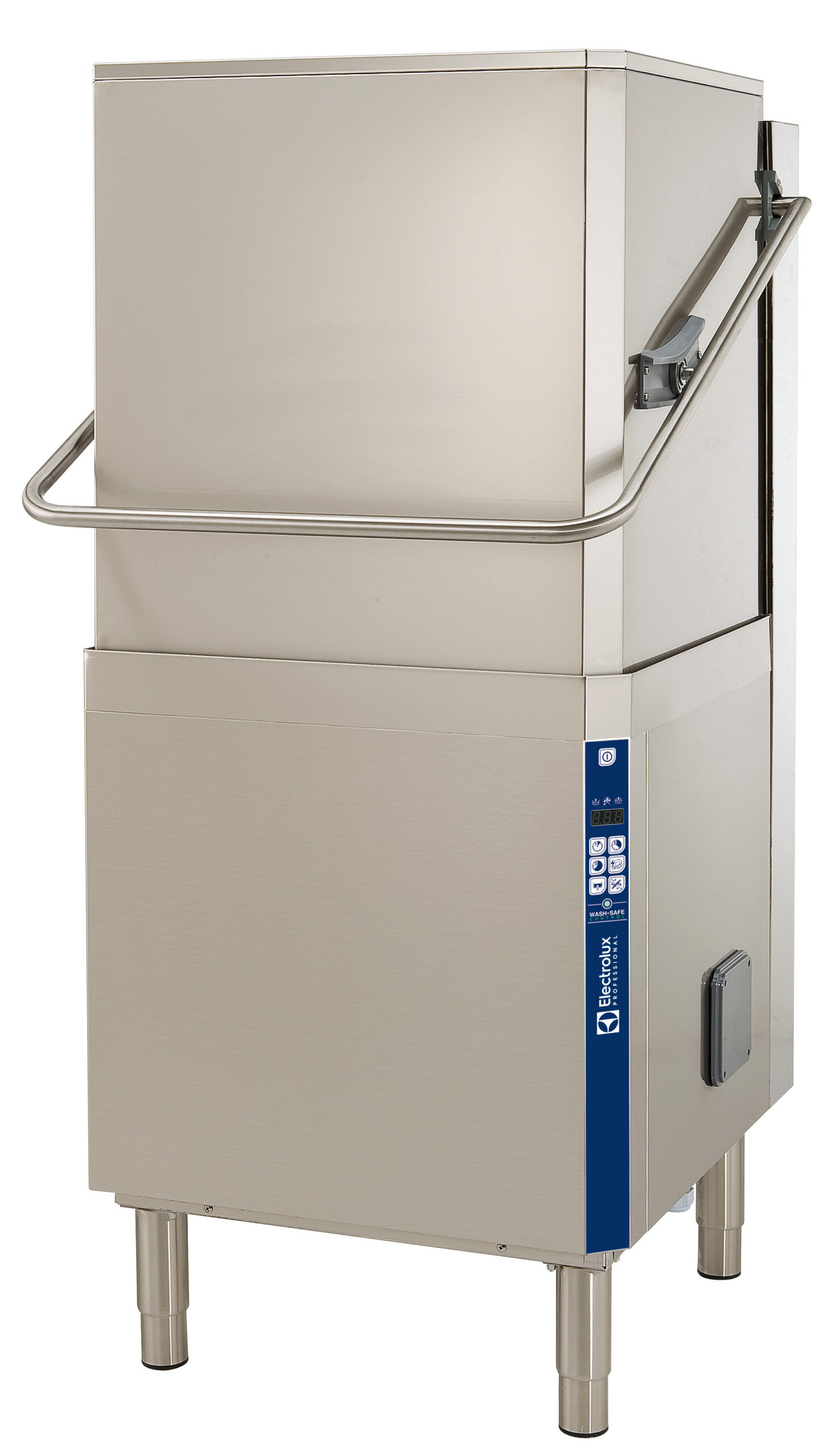

304 Stainless steel construction to include single skin hood, external, front and side panels, wash tank, tank filter plus wash and rinse arms. Uses 2 liters of clean water per final rinse cycle. 84°C rinse temperature and pressure guaranteed by AISI 304 built in atmospheric boiler and built in rinse booster pump. Washing performance is guaranteed by a powerful 0.8 kW wash pump and upper and lower stainless steel revolving washing spray arms. The unit is equipped with flexible fill hoses. Convertible from straight to corner operation and delivered on height-adjustable feet.

TECHNICAL DETAILS

Energy Electric
Voltage 400 V
Frequency 50 Hz
Phase 3N
Consumption 12.9

Dimension (W) (mm) 746
Dimension (D) (mm) 755
Dimension (H) (mm) 1,549
Product Weight (kg) 106
